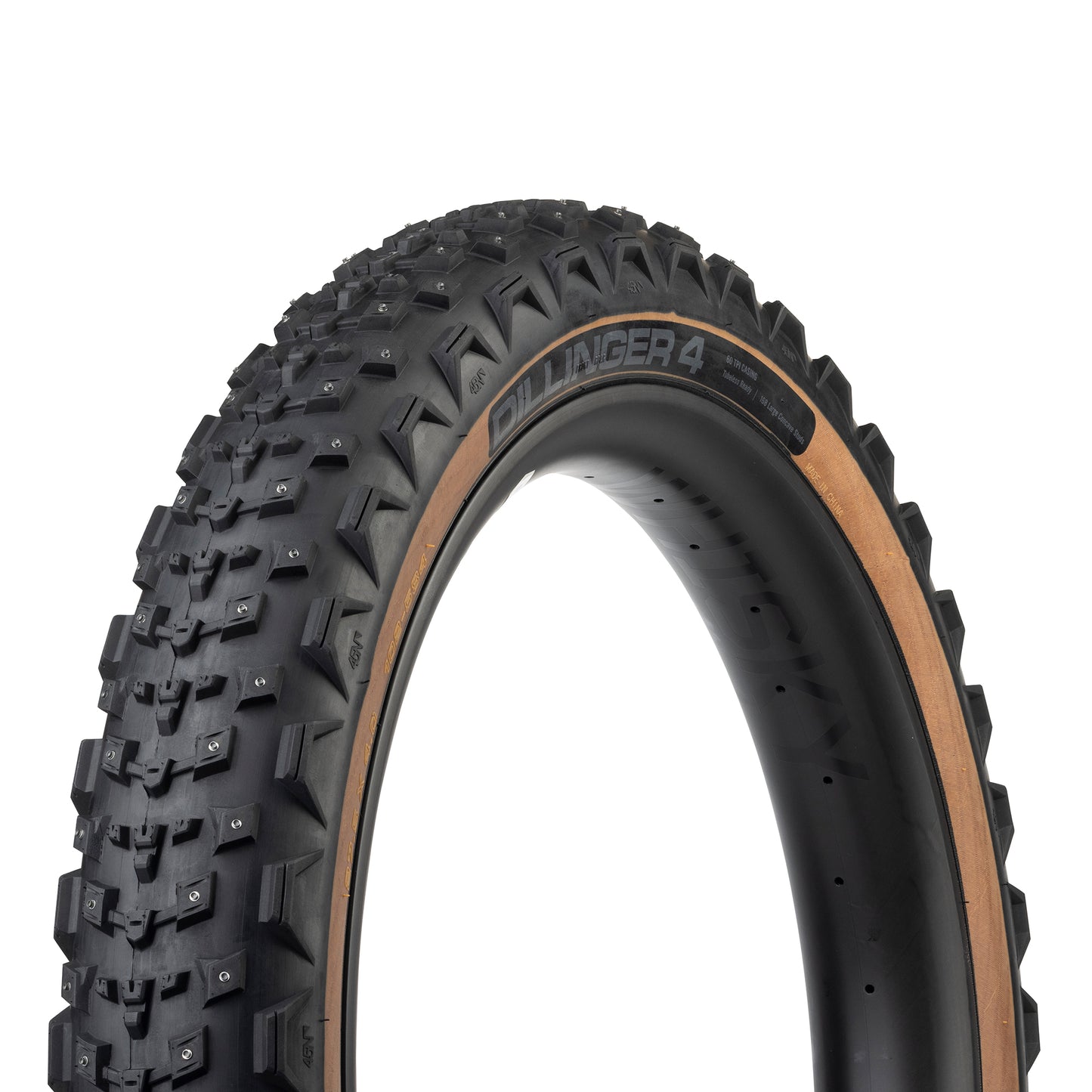

  • 45NRTH Dillinger 4 Studded Tire three-quarter view showing tread and tan sidewall
  • 45NRTH Dillinger 4 Studded Tire three-quarter view showing tread and sidewall
  • 45NRTH Dillinger 4 custom studdable tire straight-on tread view
  • 45NRTH Dillinger 4 detail view of tread with 240 carbide steel studs
1 5

Dillinger 4 Tire

Dillinger 4 Tire

$210.00 USD
$210.00 USD $210.00 USD
Sale
Color: Black
Size
Studs

Dillinger 4 is a fast traction studded fat bike tire. The tightly spaced center tread rolls quickly, while taller, braced side lugs improve cornering in snowy conditions. Carefully positioned studs allow for railing icy, off-camber singletrack with confidence and control.

  • Braced side lugs for improved cornering
  • Directional center lugs for rolling speed and braking traction
  • Replacement studs and stud insertion tool sold separately
  • Custom studdable up to 252 studs
  • We design 45NRTH tires for extreme winter cycling applications. We do not recommend this product be used with power assist bikes as the additional torque and system weight can lead to pre-mature casing wear and stud loss.
  • Always check with your rim manufacturer to verify rim & tire compatibility before assembly or use

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Specifications

TIRE SIZE COLOR TPI SUGGESTED RIM WIDTH PSI TUBELESS COMPATIBLE BEAD TIRE STUDS WEIGHT
27.5 x 4.0 Black 120 20 Yes Folding 168 Large Concave Carbide Aluminum Studs
27.5 x 4.0 Black 60 80 20 Yes Folding 168 Carbide Steel Studs
27.5 x 4.0 Black 120 80 20 Yes Folding No
27.5 x 4.0 Tan 60 80 20 Yes Folding 168 Large Concave Carbide Aluminum Studs
TIRE SIZE COLOR TPI SUGGESTED RIM WIDTH PSI TUBELESS COMPATIBLE BEAD TIRE STUDS WEIGHT
26 x 4.2 Black 120 80 20 Yes Folding 168 Large Concave Carbide Aluminum Studs
26 x 4.2 Black 120 80 20 Yes Folding No
26 x 4.2 Tan 60 80 20 Yes Folding 168 Large Concave Carbide Aluminum Studs
26 x 4.2 Black 60 80 20 Yes Folding 168 Large Concave Carbide Steel Studs
26 x 4.0 Black 60 80 30 Yes Folding 240 Carbide Steel Studs

Additional Info

Supportive Documents

Warranty

45NRTH guarantees its products against defects in materials and workmanship for a period of twenty-four (24) months from the original date of purchase, subject to the limitations below. The proof of purchase date is the one that is specified on the retail sales receipt issued by the authorized 45NRTH dealer. This warranty does not cover the following:

  • Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
  • Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
  • Damage or deterioration to the surface finish, aesthetics or appearance of the product
  • Normal wear and tear
  • Minimal loss of studs on studded tires (it is common to lose 5-10 studs under normal use)
  • Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of 45NRTH, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the 45NRTH product and is not transferrable. This warranty applies only to 45NRTH products purchased through an authorized dealer or distributor. In no event shall 45NRTH be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to 45NRTH products except as set forth herein. This warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
