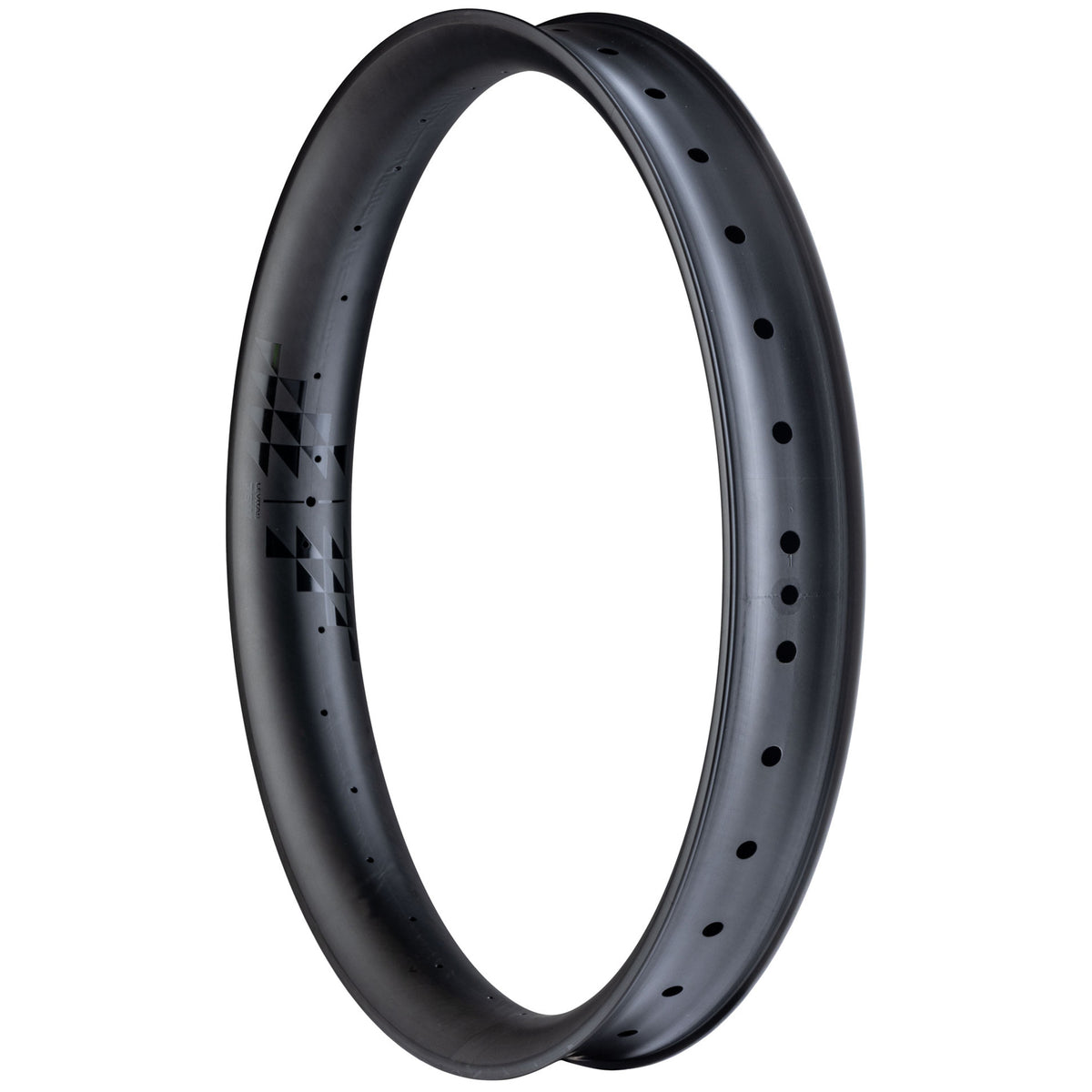

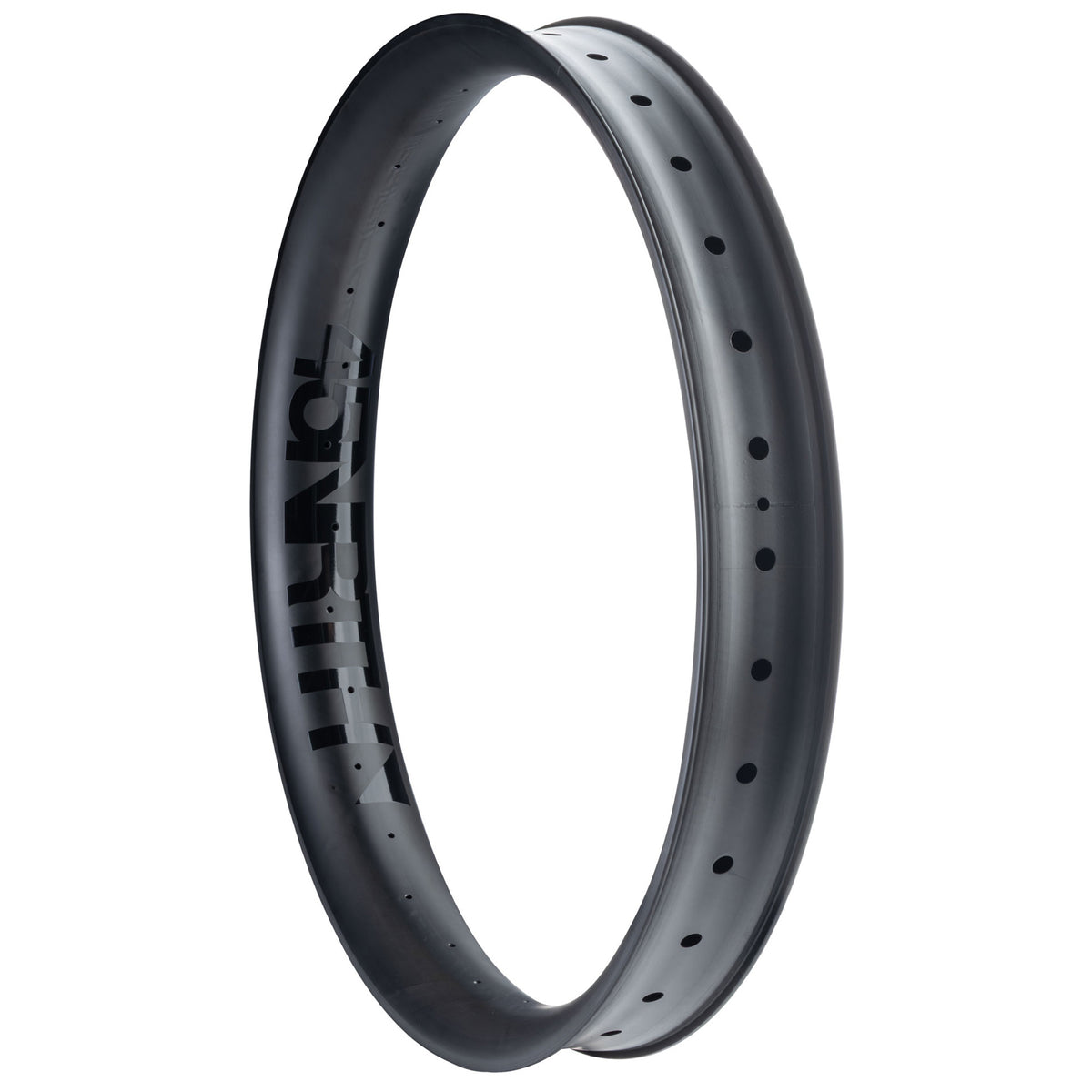

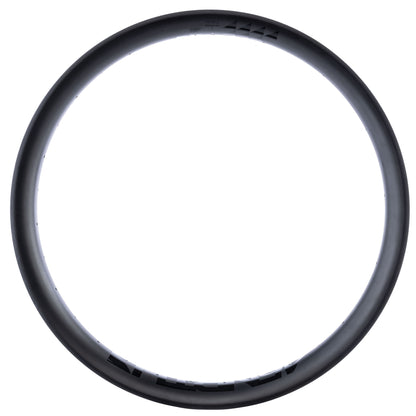

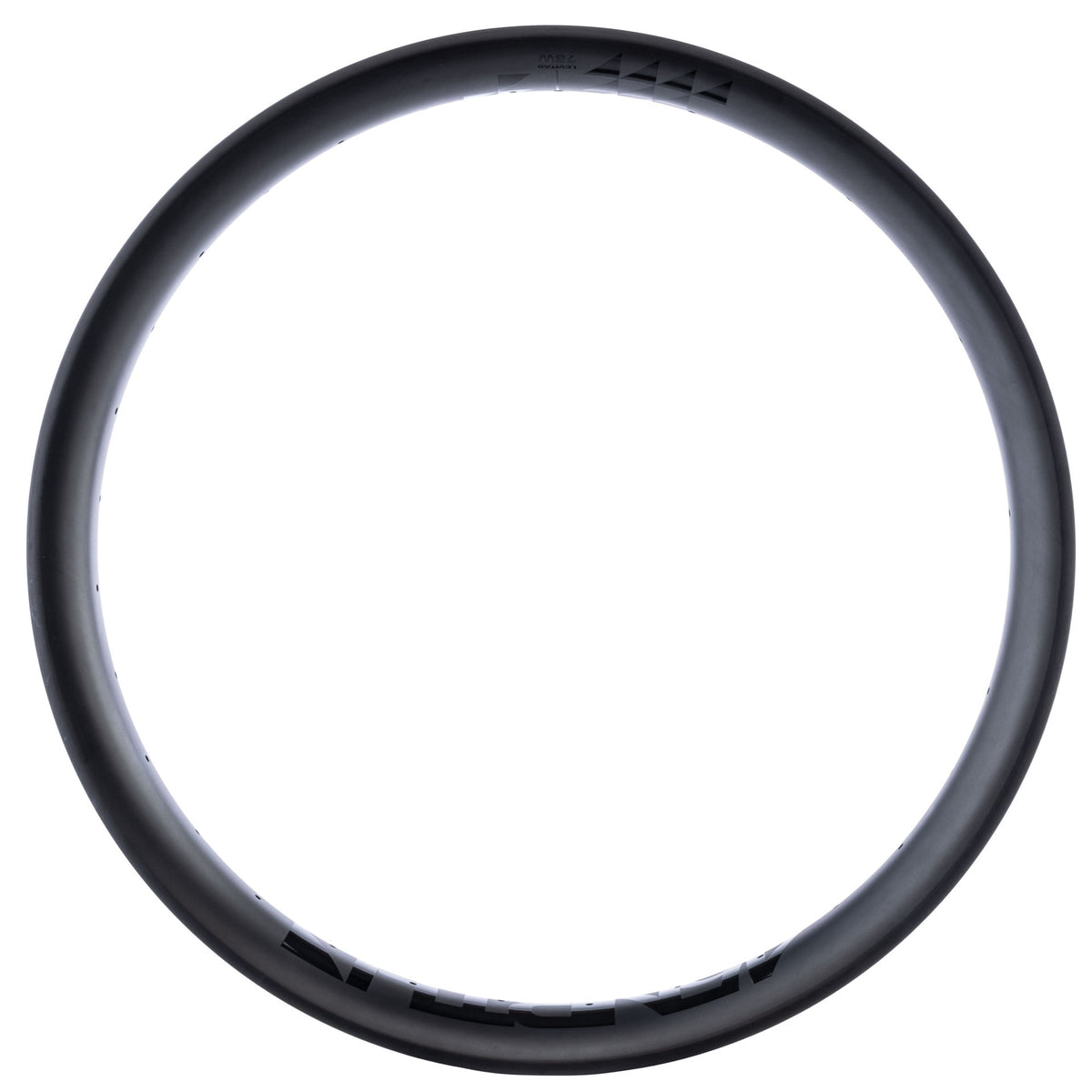

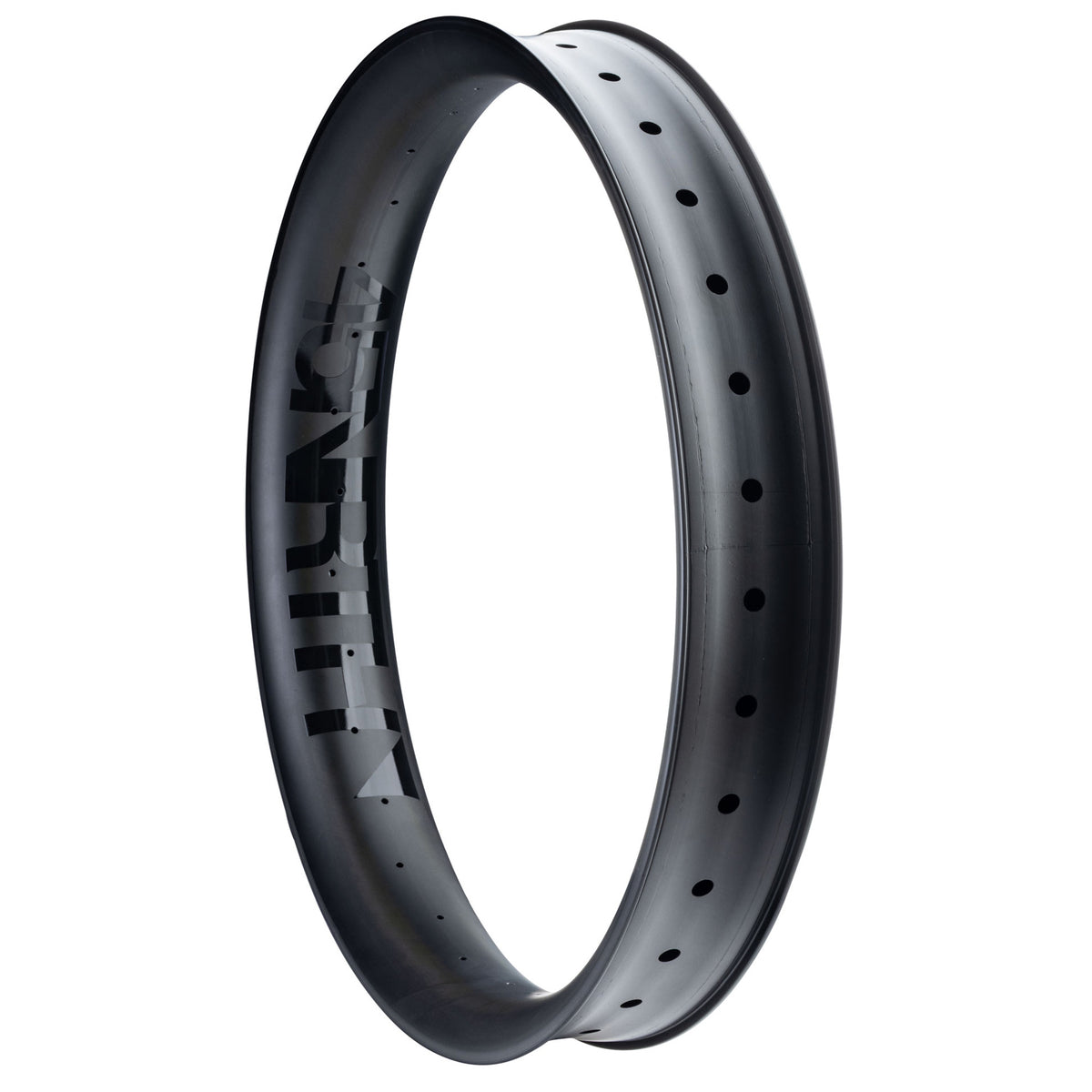

Levitas Rim
Levitas Rim
Low stock
Couldn't load pickup availability
Levitas was designed around the unique characteristics of 45NRTH fat bike tires. The internal widths are tailored for each diameter to create a broad, well-supported tire profile that maximizes flotation, traction, and control for the most demanding winter conditions. A narrower spoke bed reduces weight where possible while reinforced rim walls provide strength and impact resistance.
- 32-hole drill pattern for strong wheel builds
- Optimized relationship between tire volume and rim width for consistent contact patch and tire profile
- Fits 4-5" wide tires
- Includes single layer of 30mm rim tape and 65mm valve
- Tested to ASTM Category 3, suggested weight limit of 300 lbs
- Max inflation 30 psi
Shipping & Returns
Shipping & Returns
Orders of $75 or more pre-tax ship free. All orders under $75 pre-tax carry a $10 flat-rate shipping fee. Read the full shipping policy here.
45NRTH offers a 30-day return period on all items ordered directly from 45nrth.com. Read the full return policy here.
Share
Levitas Rim In Action
Collapsible content
Product Specifications
| RIM SIZE | RIM MATERIAL | SPOKE COUNT | ERD | INNER RIM WIDTH | OUTER RIM WIDTH | RIM DEPTH | MAX PSI | BRAKE TYPE | RECOMMENDED TIRE RANGE | TIRE TYPE | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 26" | Carbon | 32 | 510 with washers | 84 | 91 | 35 | 30 | Disc Brake | 4-5" | Tubeless Ready | 680 |
| 27.5" | Carbon | 32 | 536 with washers | 76 | 83 | 35 | 30 | Disc Brake | 4-5" | Tubeless Ready | 660 |
Additional Info
Supportive Documents
Warranty
45NRTH guarantees its products against defects in materials and workmanship for a period of twenty-four (24) months from the original date of purchase, subject to the limitations below. The proof of purchase date is the one that is specified on the retail sales receipt issued by the authorized 45NRTH dealer. This warranty does not cover the following:
- Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
- Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
- Damage or deterioration to the surface finish, aesthetics or appearance of the product
- Normal wear and tear
- Minimal loss of studs on studded tires (it is common to lose 5-10 studs under normal use)
- Labor required to remove and/or refit and re-adjust the product within the bicycle assembly
This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of 45NRTH, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the 45NRTH product and is not transferrable. This warranty applies only to 45NRTH products purchased through an authorized dealer or distributor. In no event shall 45NRTH be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to 45NRTH products except as set forth herein. This warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This warranty does not affect your statutory rights.
TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
